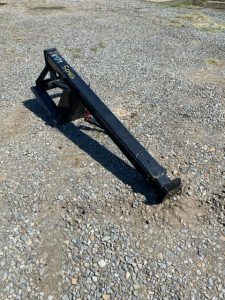

FT-TB47 forklift telescopic boom

The FT-TBS20 (or GY-TBS20) Short Cylinder Telescopic Boom is a heavy-duty, hydraulically operated lifting attachment designed for skid steer loaders, tractors, and small wheel loaders equipped with a universal quick-attach system.

• Maximum Length: Fully extended, the boom reaches up to 108 inches (9 feet). [1, 2]
• Telescopic Distance: The built-in short hydraulic cylinder provides 20 inches of powered, on-the-fly length adjustment right from the cab. [1, 2, 3]
• Maximum Load Capacity: Rated for a maximum load of 440 lbs. [1, 2]
• Operating Pressure: Designed to handle standard machine hydraulics with a working pressure range of 10Mpa to 22Mpa (approximately 1,450 to 3,200 PSI). [1]
• Hookup: Uses the industry-standard Universal Skid Steer Quick Attach (SSQA) plate and includes standard hydraulic hoses with flat-faced quick-connect coupler.
